RF Lighting Control local API

RFLC API for LC7001

A local API is available allowing control of the LC7001 controller. The LC7001 controller is used with RFLC products in the Radiant® and Adorne® collections for the US and Canada

Click here to access API documentation

Please click here to access the required security addendum for the RFLC API for LC7001

ZigBee 3.0 instructions

How it works

Localize EZ Button on the product

Remove the cover (if there is one)
Localize the “gearing wheel” marking:

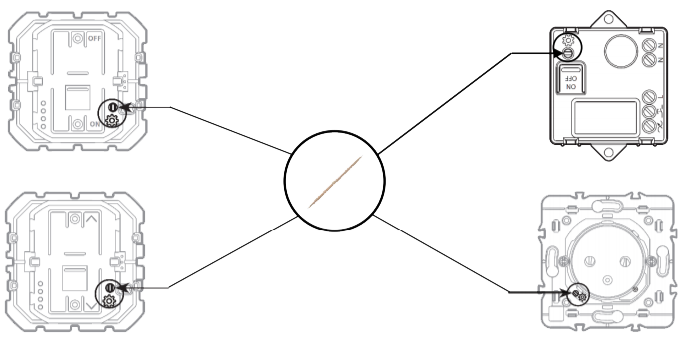

The EZ button is located inside the hole close to the “gearing wheel” marking
Use a pin ᴓ 2,5mm maxi

Product behavior	Action on the EZ button	LED feedback
JOIN an open network (network scan) If product already in ZigBee 3.0 network	Short push on EZ button11111	Red and then Solid Magenta upon join
OPEN the network If product already in ZigBee 3.0 network	Short push on EZ button	Solid Magenta
Demand / accept BINDINGS	3 seconds push on EZ button on ZR & then 3 seconds push on EZ button on ZED	3 short Blue flashes
QUIT network	10 seconds push on EZ button	1 second Red
RESET Factory	Very long push on EZ button (over 20 seconds)	ZR : stay Red ZED : 1 second Red

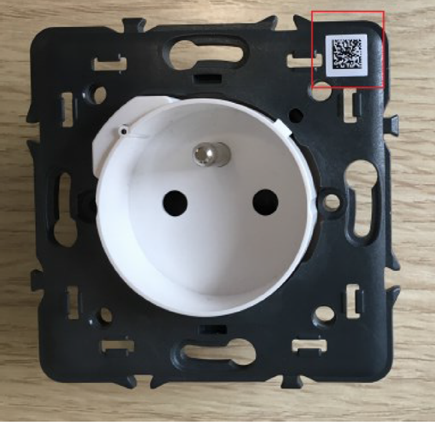

Install code

This install code includes 2 bytes of CRC

Please ignore those two last bytes

Example: 315E1335D92204E54FE86B2406823A72A9B2

Remove part in bold

Compatible products 2

Products	Function	Cloud type	Legrand / Bticino reference	Green Power proxy & sink 1st compatible version
Cable outlet	POWER	NLC	Cable outlet – ref list	NLC-23
Double gangs remote switch	LIGHTING	NLD	/	TBD
Wireless Scenes Command	SCENES	NLDP	Wireless Scenes Command – ref list	TBD
Dimmer switch w/o neutral	LIGHTING	NLF	Dimmer switch w/o neutral – ref list	TBD
Dimmer switch w/o neutral evo	LIGHTING	NLFE	Dimmer switch w/o neutral evo – ref list	TBD
Dimmer switch with neutral	LIGHTING	NLFN	Dimmer switch with neutral – ref list	NLFN-24
Double light switch	LIGHTING	NLIS	1/2/3 gangs switch with neutral – ref list	TBD
Triple light switch
Light switch
Shutter switch	SHUTTERS	NLIV	1/2 Gangs Shutter Switch – ref list	TBD
Double shutter switch	SHUTTERS
Shutter switch with neutral	SHUTTERS	NLLV	Shutter switch with neutral – ref list	NLLV-44
Light switch with neutral	LIGHTING	NLL	Light switch with neutral – ref list	NLL-31
Micromodule	LIGHTING	NLM	Micromodule – ref list	NLM-40
Connected outlet	POWER	NLP	Connected outlet – ref list	NLP-57
DIN power consumption module	POWER	NLPC	LG-412015 BT-F20T60A	TBD
Mobile outlet	POWER	NLPM	/	TBD
Contactor	POWER	NLPO	LG-412171 BT-FC80CC	TBD
Smart shedder module	POWER	NLPS	LG-412172 BT-FC80GCS	TBD
Teleruptor	POWER	NLPT	LG-412170 BT-FC80RC	TBD
Remote toggle switch	LIGHTING	NLT	NLT devices – ref list	TBD
Remote switch	LIGHTING
Remote fan controller	VENTILATION
Master remote SW Home / Away	SCENES
Shutters central remote switch	SHUTTERS
Remote dimmer switch	LIGHTING
Remote switch Wake up / Sleep	SCENES
Remote motion sensor	LIGHTING	NLTS	LG-199140 LG-064875 LG-574252 BT-3585C	TBD
Hospitality on off switch	LIGHTING	NLU	/	TBD
Hospitality dimmer switch	LIGHTING
Hospitality on off plug	POWER
Hospitality dimmer plug	POWER
Green power scenarios	SCENES	NLAS	Green power scenarios – ref list	TBD
Green power switch	LIGHTING	NLAO	Green power switch – ref list	TBD
Green power shutter switch	SHUTTERS	NLAV	Green power shutter switch – ref list	TBD

Products cluster list 2

Click on desired Product type to download its cluster documentation

NLAO – nom du produit dqfs	NLDP – nom product dqd	NLF – petit nom	NLFE – test nom product
NLAO – nom du produit dqfs	NLDP – nom product dqd	NLF – petit nom	NLFE – test nom product
NLAO – nom du produit dqfs	NLDP – nom product dqd	NLF – petit nom	NLFE – test nom product
NLAO – nom du produit dqfs	NLDP – nom product dqd	NLF – petit nom	NLFE – test nom product
NLAO – nom du produit dqfs	NLDP – nom product dqd	NLF – petit nom	NLFE – test nom product
NLAO – nom du produit dqfs	NLDP – nom product dqd	NLF – petit nom	NLFE – test nom product
NLAO – nom du produit dqfs	NLDP – nom product dqd	NLF – petit nom	NLFE – test nom product
NLAO – nom du produit dqfs	NLDP – nom product dqd	NLF – petit nom	NLFE – test nom product
NLAO – nom du produit dqfs	NLDP – nom product dqd	NLF – petit nom	NLFE – test nom product
NLAO – nom du produit dqfs	NLDP – nom product dqd	NLF – petit nom	NLFE – test nom product

ZigBee OTA

How to upgrade Legrand Zigbee devices in Zigbee 3.0 Network

Download the required firmware on Legrand developer portal

You can check which firmware is required for each Legrand devices in the Compatible products section. A firmware is a .fw file

A form is available at the bottom of this page. Fulfill it in order to ask for access to firmware download page

Upload the firmware on the gateway of the ZigBee network

The method depends on the gateway you are using : depending on your case, you may do it manually or use a release management tool. Please refer to the update management process of your gateway

Trigger the update of the ZigBee device

The process to trigger an update for a ZigBee 3.0 device is described in the ZigBee documentation. Legrand modules automatically send update requests to the gateway

Products	Cloud type	Version	Changelog
Micromodule	NLM	44	New N/A Changed N/A Fixed Security fix : firmware encryption Other minor fixes not visible for end users Known issues N/A
Light switch with Neutral	NLL	31	New N/A Changed N/A Fixed Security fix : firmware encryption Other minor fixes not visible for end users Known issues N/A

Firmware access form

In order to bring you the best possible support, please fill in the following form

After investigation of your request, we will send you all needed information to access firmware download page (We reserve the right not to accept every request)

If you don’t still have a Works with Legrand developer account, click here to create one

Firmwares download

Warning

Downloaded firmware may cause harm to your devices. Legrand group take no responsibility in case of disfunction or breakage of your devices

Products	Cloud type	Version	Download link
Micromodule	NLM	44	NLM – Micromodule – 44
Light switch with Neutral	NLL	31	NLL – Light switch with Neutral – 31
